5″ Submersible Pumps

5″ Submersible Pumps

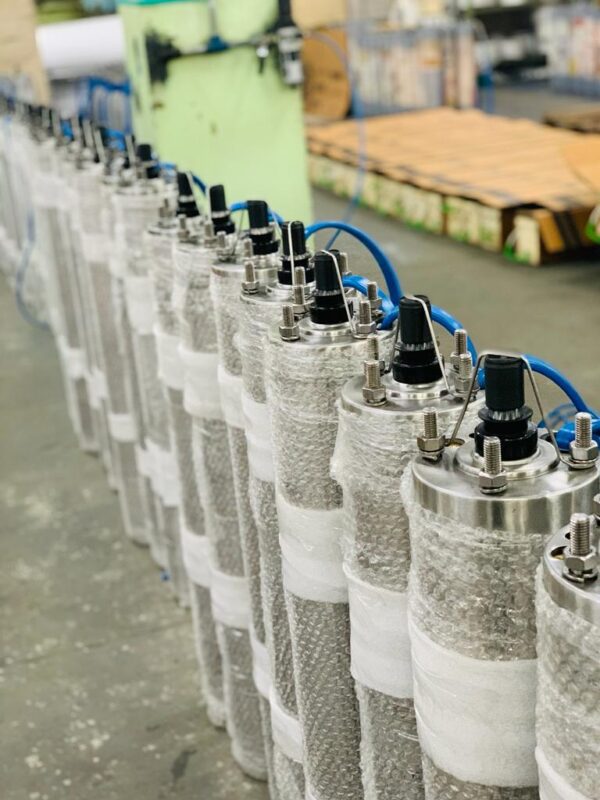

5″ Stainless Steel jacketed, Thermo-plastic Impellers, Borewell Submersible pumps suitable for clear water, high head applications. These Pumps are of Multistage Centrifugal types, accommodating Radial flow Impellers according to the required Head & Flow. The Pump & Motor are joined with Keyway coupling for easy serviceability. The precise design, materials combination, manufacturing process and stringent quality assurance procedures ensure high quality performance and durability of the pumps. These Pumps are coupled with Rigid, High-efficient, Water-filled, Rewindable submersible motors.

Technical Specification

Nominal Diameter 5″ (RADIAL)
Power Range 3.0 – 7.5HP
Nominal Speed 2800 RPM
MAX Flow 10.5 m3/h
Shut-off Head 410 m
Outlet sizes 1.25″, 1.5″, 2″
Shaft Coupling Key way

Features

  • Optimal Design
  • Precisely made parts
  • High Operating Efficiency
  • Hygiene
  • Good resistance to salt

Applications

  • Irrigation
  • Industrial
  • General Water Supply
  • Pressure boosting units
  • Fountains
  • Gardens
  • Sprinkler systems
